ECAM.23.460.S

Modell: ECAM.23.460.S | Baujahr: n/a| Anzahl Bezüge: n/a | Entkalkungsmittel: citric acid

mechanische und elektrische Kenntnisse vorhanden? *ja | Messgerät vorhanden? *ja

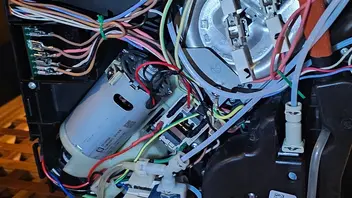

I am rebuilding an ECAM 23.460.S after complete disassembly.

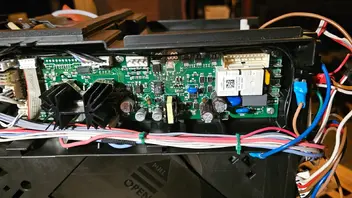

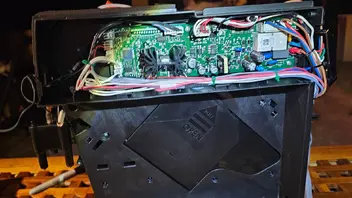

Power PCB:

GDS BRD02564R00

5213221421-12

SW02.1.000

I need to verify the original wiring before applying power. In particular I need:

• F1–F9 Faston terminal assignments

• which terminals are mains L and N

• pump connection

• grinder connection

• coffee heater/thermoblock connection

• steam heater connection

• solenoid connections

• connection/function of the separate common Faston distribution PCB/block

• protective-earth routing

So i had resolved the issue;

F1 - empty

F2 - brown wire to commons terminal block on the other side

F3 - brown wire to pump

F4 - brown wire (live) to MAINS AC

F5 - blue wire (neutral) to MAINS AC

F6 - N/A

F7 - black wire to grinder

F8 - blue wire to cappuccino heat element

F9 - red wire to main water heat element

Tested with current wiring set up. Hope this helps for those in need.
